Free Form™ AIR HT

说明

PROCESSING RECOMMENDATIONS
Safety – Use in a well-ventilated area (“room size” ventilation). Generally, if you use any epoxy system on a regular basis, wearing a NIOSH approved respirator is advised. Wear safety glasses, long sleeves and rubber gloves to minimize skin contact. Wear nitrile or vinyl gloves only.

Preparation – Materials should be stored and used at room temperature (73°F/23°C). This product has a limited shelf life and should be used as soon as possible. Mixing should be done in a well-ventilated area. Wear safety glasses, long sleeves and rubber gloves to minimize contamination risk. If making a 2 or more piece mother mold, apply appropriate shim apparatus to rubber mold exterior. Because no two applications are quite the same, a small test application to determine suitability for your project is recommended if performance of this material is in question.

Applying A Release Agent – For releasing epoxy from nonporous surfaces such as resin, metal, glass etc., use Ease Release™ 200 or 205 (available from Smooth-On) to prevent adhesion.

This product is mixed by hand. You must wear gloves when mixing this material, wearing vinyl gloves reduces inhibition risk.

MEASURING
Free Form™ AIR HT putty comes as two parts. Dispense 2A:1B by weight or volume. These products have a limited shelf life and should be used as soon as possible.

MIXING
Knead parts together aggressively to a uniform color and apply quickly to surface of tool or mold.

APPLYING & LAMINATING
Applying – Mixed Free Form™ AIR HT is a dough that can be applied up to 1.5” (3.81 cm) thickness. Mix only enough material to be used at one time. Free Form™ AIR HT will bond to itself.

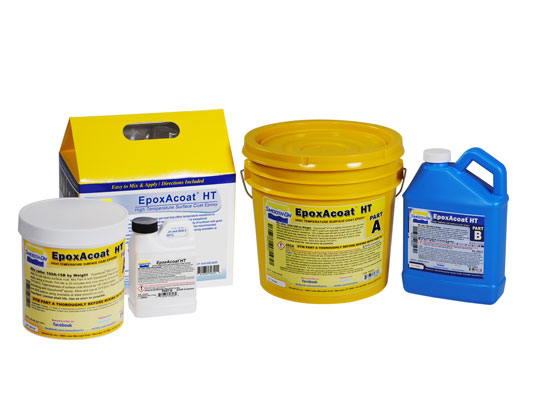

Laminating - Free Form™ AIR HT can be used in conjunction with EpoxAcoat™ HT surface coat and EpoxAmite™ HT laminating resin to create a strong and lightweight composite tool or mold. Free Form™ AIR HT can also be used to stabilize tools during the heat post curing process to help reduce deformation.

CURING & HEAT RESISTANCE
Cure Time - Refer to specified Cure Times in the Product Overview section at room temperature depending on mass. Cured material will be hard and unable to penetrate with a finger nail. Cured epoxy can now be dry sanded. If machining or sanding, wear NIOSH approved mask to prevent inhalation of particles. Pot Life and Cure Time values are dependent on mass and mold configuration, as epoxies are mass-sensitive.

Heat Resistance – Putty cured at room with a minimum thickness of ½” (1.27 cm) will resist temperatures up to 300°F/149°C

Post Curing For Maximum Heat Resistance - The tool should be allowed to cure at room temperature (73°F/23°C) for 16 hrs. At that point, preheat oven to 200°F and apply the following oven cure. Cycle should be 50 degrees per hour (tool temperature, not air temperature).

1 Hour at 200°F/93°C , 1 Hour at 250°F/121°C, 1 Hour at 300°F/149°C, 1 Hour at 350°F/ 177°C, 1 Hour at 400°F/204°C, then turn off oven and allow tool to cool to room temperature.

This post cure schedule will result in a heat resistance of 400°F/204°C.

Removing Uncured Free Form™ AIR HT Epoxy Putty - Remove as much uncured material from the surface as possible. Clean any residue with soap and water. Optional - Use E-POX-EE KLEENER™ available from Smooth-On.
