Add Material to Compare
Key Differences
| Pot Life | 90 seconds | 5 minutes | 6 minutes |
| Cure Time | 7 minutes | 20 minutes | 20 minutes |
| Specific Volume | 23.7 cu. in./lb. | 23.7 cu. in./lb. | 30.4 cu. in./lb. |
| Color | Aqua, Green | Purple | Green |
Disclaimer
Although we do our best to ensure the accuracy of this Compare Tool, Smooth-On offers no warranty either expressed or implied as to the reliability of the information contained herein. Smooth-On assumes no liability for loss or damage associated with use of the Compare Tool. If this is a critical project, we encourage you to review all of the technical data below and contact our Technical Service department with any questions or concerns.All Technical Data
| Body Double™ Fast Set | Body Double™ Standard Set | Body Double™ Silk | |
|---|---|---|---|
| Product Type |
|
|
|
| Mixed Viscosity | Brushable | Brushable | Brushable |
| Mix Ratio By Volume | 1A:1B | 1A:1B | 1A:1B |
| Mix Ratio By Weight | 1A:1B | 1A:1B | 1A:1B |
| Pot Life | 90 seconds | 5 minutes | 6 minutes |
| Cure Time | 7 minutes | 20 minutes | 20 minutes |
| Shore A Hardness | 25 | 25 | 25 |
| Specific Gravity | 1.17 g/cc | 1.17 g/cc | 0.91 g/cc |
| Specific Volume | 23.7 cu. in./lb. | 23.7 cu. in./lb. | 30.4 cu. in./lb. |
| Color | Aqua, Green | Purple | Green |
| Die C Tear Strength | 40 pli | 40 pli | — |
| Tensile Strength | 450 psi | 525 psi | — |
| Elongation @ Break | 500 % | 500 % | — |
| Shrinkage | <.001 in. / in. | <.001 in. / in. | <.001 in. / in. |
Product Description

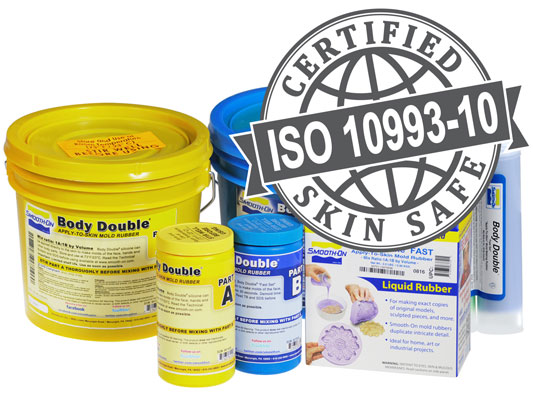

Body Double™ Fast Set
Body Double™ is a long lasting platinum-cure silicone rubber that can be applied directly to the skin to make molds of the face, hands and other body parts. The rubber cures quickly and will reproduce perfect detail from any original model – far better detail than any alginate!

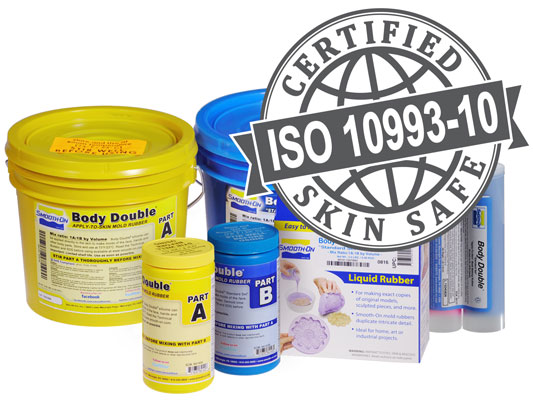

Body Double™ Standard Set
Body Double™ is a long lasting platinum-cure silicone rubber that can be applied directly to the skin to make molds of the face, hands and other body parts. The rubber cures quickly and will reproduce perfect detail from any original model – far better detail than any alginate!

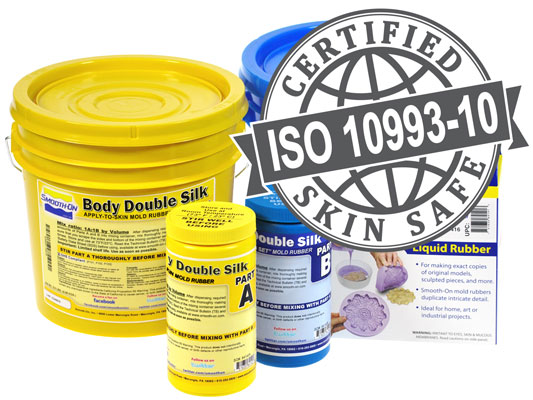

Body Double™ Silk
Body Double™ SILK is a self-releasing platinum-cure silicone rubber that can be applied directly to the skin to make molds of the face, hands and other body parts. The rubber cures quickly and will reproduce excellent detail from any original model.
Body Double™ SILK will release from closely cropped hair-covered skin surfaces(short beards, mustaches, eyebrows, pubic hair, etc.). Release cream or Hyperfolic are not needed when using Body Double™ SILK. Body Double™ SILK will last for many castings of almost any material including plaster, Matrix™ Neo™, wax, resins (Smooth-Cast urethanes, polyester, etc.) Body Double™ SILK has a working time of 6 minutes and a demold time of 20 minutes*.
*Depending on material temperature, ambient temperature and body temperature – see “Preparation” below for details.
