Key Differences
| Pot Life | 30 minutes | 45 minutes |
| Shore A Hardness | 00-20 | 00-30 |
| Die B Tear Strength | 30 pli | 38 pli |
Disclaimer
Although we do our best to ensure the accuracy of this Compare Tool, Smooth-On offers no warranty either expressed or implied as to the reliability of the information contained herein. Smooth-On assumes no liability for loss or damage associated with use of the Compare Tool. If this is a critical project, we encourage you to review all of the technical data below and contact our Technical Service department with any questions or concerns.All Technical Data
| Ecoflex™ 00-20 | Ecoflex™ 00-30 | |
|---|---|---|
| Product Type |
|
|
| Mixed Viscosity | 3,000 cps | 3,000 cps |
| Mix Ratio By Volume | 1A:1B | 1A:1B |
| Mix Ratio By Weight | 1A:1B | 1A:1B |
| Pot Life | 30 minutes | 45 minutes |
| Cure Time | 4 hours | 4 hours |
| Shore A Hardness | 00-20 | 00-30 |
| Specific Gravity | 1.07 g/cc | 1.07 g/cc |
| Specific Volume | 26.0 cu. in./lb. | 26.0 cu. in./lb. |
| Color | Translucent | Translucent |
| Die B Tear Strength | 30 pli | 38 pli |
| Tensile Strength | 160 psi | 200 psi |
| Elongation @ Break | 845 % | 900 % |
| 100% Modulus | 8 psi | 10 psi |
| Shrinkage | <.001 in. / in. | <.001 in. / in. |
| Useful Temperature (min) | -65 °F | -65 °F |
| Useful Temperature (max) | 450 °F | 450 °F |
Product Description

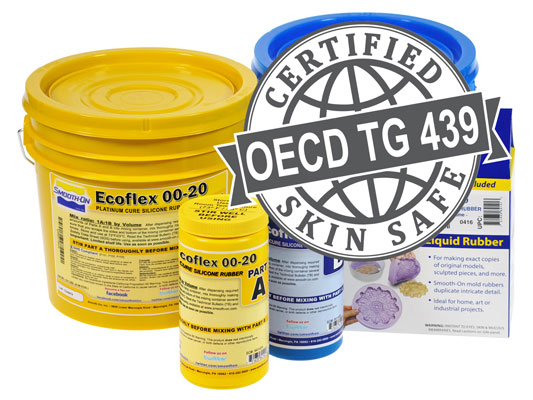

Ecoflex™ 00-20
Ecoflex™ rubbers are platinum-catalyzed silicones that are versatile and easy to use. Ecoflex™ rubbers are mixed 1A:1B by weight or volume and cured at room temperature with negligible shrinkage. Low viscosity ensures easy mixing and de-airing, or you can choose to mix and dispense using our convenient dispensing cartridges. Cured material is skin safe and certified by an independent laboratory to ISO 10993-10, Biological evaluation of medical devices, Part 10: Tests for irritation and skin sensitization.
Certified Skin Safe - Ecoflex™ 00-20 is skin safe and certified by an independent laboratory to OECD TG 439.

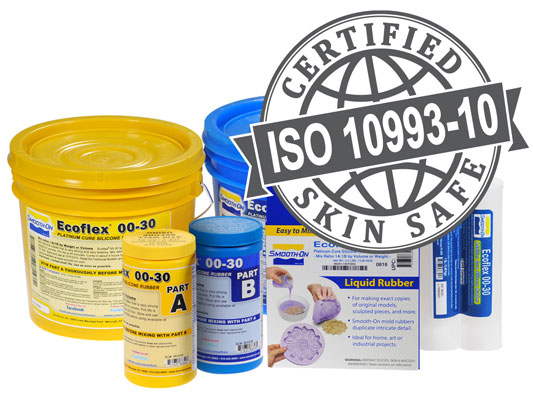

Ecoflex™ 00-30
Ecoflex™ rubbers are platinum-catalyzed silicones that are versatile and easy to use. Ecoflex™ rubbers are mixed 1A:1B by weight or volume and cured at room temperature with negligible shrinkage. Low viscosity ensures easy mixing and de-airing, or you can choose to mix and dispense using our convenient dispensing cartridges. Cured material is skin safe and certified by an independent laboratory to ISO 10993-10, Biological evaluation of medical devices, Part 10: Tests for irritation and skin sensitization.
